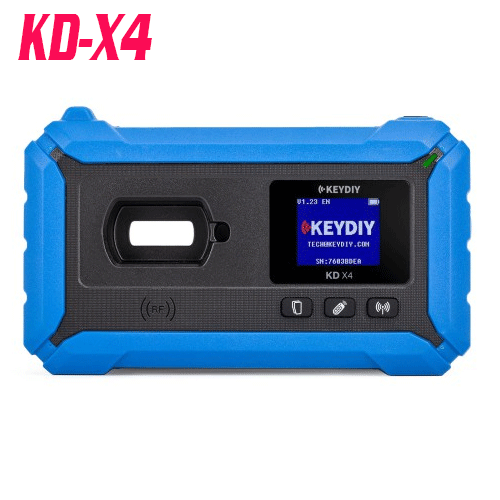

G-002 KD-X4 5-in-1 Key Programmer Combines KD Max

EYDIY KD-X4 KDX4 5-in-1 Key Programmer Combines KD Max, KD Mate and KD Mini Prog

KD-X4 combines Functions Of : KD master + KD MAX + KD MATE + KD MINI PROG

KD-X4 is a professional device that integrates recognition, generation, copying, programming, and matching. It can be operated independently, or connected to tablets, mobile phones, and PC software in multiple free modes.
Locksmith can choose the mode of operation that suits their own usage habits. Exclusive priority release of some industry-leading features.

The device supports frequency detection (supporting 2.4G), remote control generation, remote control simulation, key-less remote simulation, remote control copying, chip recognition/copying, chip generation, chip acquisition, key unlocking, immo programming, programmer reading and writing data, online upgrading and other functions.

It has become a professional device for locksmith with simple operation, stable performance, and wide coverage of car models.


KEYDIY KD-X4 Locksmith's Universal Tool Features:

• Industry Debut UWB (Bluetooth) Key Detection : Detects Bluetooth-enabled car keys with precision.
• Toyota Used Key Unlock-Free Programming : Exclusive feature for programming Toyota used keys without unlocking.
• MLB Chip Detection Function : First-to-market technology for detecting MLB chips.
• CANFD Integration : No additional accessories required for advanced diagnostics.
• 24V Chinese Heavy-Duty Truck Model Programming : Supports heavy-duty truck key programming.
• Built-In Programmer Function : Future support for 5A mileage programming.
• One-Second Startup : Boosts efficiency by reducing startup time significantly.
• Multilingual Support : Available in 19 languages, including Arabic, Korean, German, Spanish, English, and Chinese.
• Ford Alarm Cancellation & Toyota 8A Blade Key Programming : One wire harness handles both tasks (requires separate purchase).
• Please note that our KEYDIY tools do not support the following languages:
• Polish, Chinese, Slovenian, Turkish, Brazilian, Portuguese, Hebrew, and Persian.

The KD-X4 is an all-in-one professional locksmith device that simplifies a wide range of tasks, including key recognition, generation, copying, programming, and matching. It can be used independently or connected to tablets, mobile phones, and PC software, offering flexible operation modes.

This device empowers professionals to handle various key types and protocols with ease. Whether replacing lost keys, duplicating keys for convenience, or programming new ones, the KD-X4 streamlines each process. It supports advanced features like frequency detection (2.4G), remote control generation and simulation, chip recognition/copying, key unlocking, and immo programming.

The KD-X4 eliminates the struggles with incompatible devices or software limitations, making it an essential tool for tackling the complex security systems found in modern vehicles. With its stable performance and wide compatibility, the KD-X4 is indispensable in meeting the demands of today’s automotive locksmith market.

KEYDIY KD-X4 Supported Functions:

Remote Generation : Supports 5600+ remote control program generations.
Toyota Rollin-Code Bypass + MQB Key Programming : For 2019+ Toyota models.
Remote Copying : Compatible with 50+ car models.
Key Simulation : Simulates remote controls and smart keys.
Frequency Detection : Detects 315M, 433M, 467M, 868M, 902M, and 2.4G frequencies.
Anti-Theft Chip Recognition : Supports MLB, 5C, 46, 47, 48, MOB48, 4D, 4C, 8A, 6A, 4A, 8E, 8C, 13, 11, 12, 7935X, 49, 33/40-44 AUDI5 ID card IC card.
Specialized Chip Generation : Generates Toyota G, NB multifunctional, 30/40-44, 48, 4D/4C, Toyota 8A/H, and 46 specialized chips.
Chip Acquisition : Supports device acquisition antenna, external acquisition antenna, and built-in acquisition enhancer for BYD all-key-lost scenarios, OBD 48, and more.
Key Unlocking : Works with 36 different brand keys.
Battery Voltage Detection : Tests 3V remote key battery voltage.
Key Leakage Detection : Identifies 3V remote control key leakage.
Second-Hand Remote Programming Without Unlocking : Supports Toyota/Lexus 8A-AA, BA, 4A-type used key unlock-free programming.
Immo Programming : Compatible with 51+ brands, with continuous updates.
Programmer Function : Reads immo data from Volkswagen Audi MQB dashboards.

Button and Interface Function Description

Using the KEYDIY KD-X4 is straightforward and user-friendly. Follow these steps to get started:


Power On/Off Button:
In the off state, press and hold the power button for 2 seconds to turn on the device.
When the device is on, press and hold the power button for 2 seconds to turn it off.

Chip Recognition Button:
Press to enter the chip detection function.
Long press to access the function-switching menu, where you can select:
Chip Recognition
Ignition Coil Detection
System Settings

Remote Copy Button:
Press to enter the remote normal copy function.
Long press to access the function-switching menu, where you can select:
Normal Copy
Special Copy
Remote Data Comparison

Frequency Detection Button:
Press to enter the frequency detection mode within 315MHz.
Long press to access the function-switching menu, where you can select:
Frequency Detection within 315MHz
433.92MHz Frequency Detection
Battery Voltage Detection/Leakage Detection
(Refer to Figure 3 on the right)

Key Induction Coil and IMMO Chip Placement Hole:
Used for identifying and copying car key IMMO chips.
Can also generate KD remotes wirelessly.

Frequency Detection Area:
Place the key in this area and press the remote control button to detect the frequency.

Power Indicator Light:
Power On Status: Indicator light flashes.
Charging Status: Indicator light stays on and turns yellow.
Fully Charged Status: Indicator light stays on and turns green.

Display Screen:
Displays device information, key information, and more.

USB Interface:
Used for charging or connecting to mobile phones or PC terminals via a wired connection.

Programmer Interface:
Used to read data from Volkswagen MQB dashboards, Audi dashboards, BCM data, and various octagonal chip EEPROMs.

Wired Programming Interface:
Used for KD wired remote generation, unlocking original keys, detecting remote battery voltage, and leakage detection.

Collecting Antenna:
Collects car ignition data, tests ignition coils, performs chip simulation, and other functions.

External Acquisition Antenna Interface:
Used for collecting car ignition data, ignition coil detection, chip simulation, and similar functions.

Toyota Adapter Cable Interface:
Used for Toyota/Lexus smart key all-key-lost scenarios.

OBD Main Cable Interface:
Connects the external OBD II cable to the car.
Works with the Mobile KD App to enable programming functions.

Product Specifications:

Battery capacity: 3.7V 3500MAh

Input power: 12V/24V/5V 1A

Working temperature: -30-50 degrees Celsius

Storage temperature: -40-60 degrees Celsius

Display: 1.8-inch color screen

Size: 200X120X40MM

Connectivity: Blooth, USB2.0(TYPE B)

KEYDIY KD-X4 Key Programmer Frequently Asked Questions:

What is the KEYDIY KD-X4, and what does it do?
The KEYDIY KD-X4 is an advanced locksmith tool designed for automotive key programming and repair tasks. It combines functionalities such as key recognition, generation, copying, programming, and matching into one device. It supports over 5600 remote control program generations, frequency detection, chip recognition, and immobilizer programming for various car brands.

Which car models and brands does the KEYDIY KD-X4 support?
The KD-X4 supports over 51+ car brands, including Toyota, Lexus, Ford, Volkswagen, Audi, and more. It also provides specialized functions like Toyota Rollin-Code Bypass and MQB key programming for 2019+ Toyota models.

Can the KD-X4 unlock and reprogram used car keys?
Yes, the KD-X4 supports unlocking used keys, including Toyota 8A, 4A, and other transponder types, allowing them to be reprogrammed for another vehicle.

Does the KD-X4 support key programming for heavy-duty trucks?
Yes, the KD-X4 includes 24V Chinese heavy-duty truck key programming, making it compatible with commercial vehicles.

What languages does the KEYDIY KD-X4 support?
The KD-X4 offers multilingual support in 19 languages, including Arabic, Korean, German, Spanish, English, and Chinese, making it accessible to users worldwide.

What is included in the KD-X4 package?
The KEYDIY KD-X4 box contains the KD-X4 device, OBD main cable, USB cable, Toyota adapter cable, programmer adapter board, programmer wiring cable, remote control burning cable, key unlocking cable, and an external acquisition antenna.

Package includes:

1pc x KD-X4 Device
1pc x OBD Main Cable
1pc x USB Cable
1pc x Toyota Adapter Cable
1pc x Programmer Adapter Board
1pc x Programmer Wiring Cable
1pc x Remote Control Burning Cable
1pc x Key Unlocking Cable
1pc x External Acquisition Antenna
