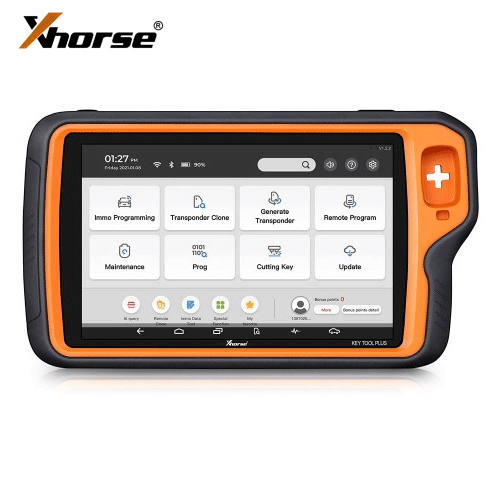

XY-02 Xhorse VVDI Key Tool Plus Pad Full GL Version

Key Tool Plus Highlights:
1.Language: English ,French ,Spanish ,Portugues ,Chinese
The rest language beside those 5 , only xhorse local dealer can activate related language
For example : If you need Russian language, only xhorse russia dealer can activate it to customer.
2.Update Online free Lifetime
3. Read Xhorse bonus points for copy 48 96 bit (100 points) and mercedes calcuation (200 points).
It can bind with key cutting machine,  the Mercedes calcuation can get 1 day a free token everyday.
4.All-in-one functions.
It provides an all-in-one security solution for locksmiths that combines functions of VVDI2, VVDI MB, Key Tool Max
and VVDI PROG with the ability to expand the capabilities as needed.
5.Toyota H Smart Key AKL Without Emulator
6.Global Full Version, Color Orange
VVDI PAD is GL Global Version, just different Power Aadapter for EU/UK/US Plug.


VVDI KEY TOOL PLUS Has It All
A Computer, A Mobile Phone, A Tablet, An Immo Programmer, A Remote Maker
A Transponder Generator, A Programmer, A Frequency Tester


Key Tool Plus Functions:
1.Outfitted to Outperform
2.Serve Your Work the Best
3.4GB RAM + 128GB ROM large storage capacity
   8-Core high performance processor
4.Faster than most ordinary smart devices
5.4 aspects improving markedly:
6.Data processing, Instruction completing, Execution operation, Strong stability
7.Versatility ---- Expand What's Possible
  IMMO Programming for Luxury Cars
As a versatile automotive security device
KEY TOOL PLUS simplifies immo programming for luxury cars like Volkswagen, AUDI, BMW, BENZ, Porsche, Bentley, SEAT, etc.
Users can effortlessly finish the tough work in one single tablet.
Additionally, the support car models won't end here: more cars will be included in the list by Xhorse.
8.All KEY TOOL Functions in One Tablet
Various Devices No More,Carry a Lighter Load
Transponder Clone
Remote Clone
Transponder Generation
Remote Generation
Transponder Reading
Remote Renew
Frequency Detection
IC/ID Clone
More Functions coming soon
Eg. OBD diagnosis and MQB49 immo programming have just been released on KEY TOOL PLUS
and it's projected to support DOIP, CAN-FD, Toyota 8A smartkey in the near future.

9.Keep the Key Cutting Machine in Control
Available to control Xhorse key cutting machines (CONDOR, DOLPHIN, Panda and more).
PERFECTLY WORK AS AN OPERATION SCREEN

Key Tool Plus Features List:
1.Luxury Cars IMMO Programming
2.Ordinary Cars IMMO Programming
3.Remote Program
4.Transponder Operations
5.File Make Key
6.Prog Function
7.Maintenance
8.Control Xhorse Key Cutting Machines
9.More Functions Coming Soon


IMMO Programming for Luxury Cars
VW&AUDI: VW&AUDI IMMO Programming
√3rd/4th/5th generation
√MQB
√MED17/EDC17
BMW: BMW IMMO Programming
Extremely Cost-effective, Surprisingly Professional
KEY TOOL PLUS can achieve BMW CAS1/CAS2/CAS3/CAS3+/CAS4/CAS4+ OBD key learning
FEM/BDC key programming, File Make Key, ECU ISN reading, ECU and CAS synchronization, etc.
Getting work done has never been easier.
BENZ:Mercedes-Benz IMMO Prorgamming
User-demand-oriented, Innovation-driven
KEY TOOL PLUS offers users all-rounded and professional security solutions for Mercedes-Benz.
The device helps with FBS3 Keyless-go smart key programming, all key lost, adding keys,
enabling & disabling keys and EIS/EZS, ELV, ECU, gearbox, ISM replacing.
Common Car Brands - Toyota, Honda, Mazda, Ford, etc.

Key Tool Plus supports over 20,000 car models worldwide.
We can select the car brands and car models on the immo programming interface.
On this smart platform, we can easily find the car models we need by brand area, brand name, and A-Z word search.


Supported EEPROM and FLASH
ATMEL
MITSUBISHI
WINBOND
CATALYST
ST
XICOR
MICROCHIP
SEIKO
XHORSE
MXIC
TOSHIBA
Support Modules
√BMW: CAS3/CAS3+/CAS4/CAS4+/FEM/FRM/BDC
√BENZ: EIS/EIZ                         √LANDROVER: RFA
√PORSCHE: BCM                       √VOLVO: CEM/KVM
√BMW/AUDI/VW: ECU AND MORE
√HONDA/HYUNDAI/KIA: MB91F dashboard


Support Transponders:
ID46 online calculation
ID48 (96 bit) online calculation
Toyota H(8A) online calculation
Transponder generation and cloning of over 850 car models
Special transponders and special cars and old car models
Remotes
Support remote generation, smart key generation, frequency detection, remote clone for a variety of car models
HCS/fix code clone, non-HCS rolling code clone, fix code editing
PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fix code editing


Leading Team with Leading Tech
KEY TOOL PLUS provides users with functions including key programming, key learning
ECU coding/adaption/replacing, diagnostic function, etc.
to best resolve most problems they met in immo programming for Volkswagen and AUDI cars.


Solve Programming Dilemma
IMMO Data Tool (File Make Key)
For some cars, key programming and other settings can't be finished via OBDⅡ.
KEY TOOL PLUS gives amazing strength to solve the dilemma by delivering File Make Key function which can be used to add keys for them.
This very function features generating transponder via reading related transponder data of the car immo module directly.

Example: Magotan/CC 48 transpnder File Make Key
SUPPORT
Audi, Jaguar, Volvo, Ford, BMW,  Land Rover,  Buick, Kia, Bentley, Peugeot, Cadillac, Toyota, Honda, Porsche, Chevrolet, Nissan, etc.


Maintenance Function
Meet Your Work Demands in Every Way. KEY TOOL PLUS supports maintenance light reset,
electric parking brake, TPMS, battery matching, throttle program, injector programming,
steering angle programming, bitting decode, gearbox programming, headlight programming, etc.
More maintenance functions will be released soon.


Key Tool plus other lights:
1.High-tech Made Simple
Keep the Key Cutting Machine in Control
Available to control Xhorse key cutting machines (CONDOR, DOLPHIN, Panda and more).  PERFECTLY WORK AS AN OPERATION SCREEN
2.Powered for Performance
10.1” Screen
Super 10.1”
Anti-glare display enables top operation experience.
3.13MP HD Camera
The 13MP rear camera is designed to fit in multiple scenarios perfectly.
4.10000mAh Battery
Long battery life and PD3.0 fast charge
Keep you productive throughout your day.
5. OBD Power Supply
PD3.0 FastCharge
Bluetooth 5.0
WiFi 2.4G/5G
6.IMPORTANCE
We hereby state that the trade-marks or trade names mentioned in this document are the exclusive property of authorized manufacutures.
Said trade-marks or trade names are nominated only for the purpose of information so that our users can rapidly identify product information.
This document is reserved exclusively for professional locksmiths who use Xhorse products.

Key Tool Plus Prog Function
1.Key Tool Plus supports reading and writing common modules and chips.
It covers "EEPROM and FLASH", "IMMO", "Instrument", "Airbag", "Read ECU with CAN" and "ECU", etc.
2.Support EEPROM reading and writing: support reading & writing most types of transponders in the market.
3.Support BMW immo module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
4.Support Land Rover RFA module reading and immo programming.
5.Support Porsche BCM programming.
6.Support read ECU with CAN on AUDI, BMW, and VOLKSWAGEN.
7.Support Instrument programming on HONDA, KIA, and HYUNDAI.

Note: To complete certain functions, users need to connect KEY TOOL PLUS to the specific adapters and get the required model prompt on the interface.
The function is only effective on the advanced edition.)

IMMO Data Tool(File Make Key)

Key programming and certain settings can't be finished via OBD port on some car models due to their immobilizer protection system.
Through a professional programming method - FILE MAKE KEY, the problem can be easily solved.

File make key, to generate a car key via a data file. Users need to use the specific device to read the immo data,
and generate a boot transponder to directly start the car, no need to match the original car.
(Users may need to rewrite the data to the immo box when doing the programming process on some car models.)

Control Xhorse Key Cutting Machines

Key Tool Plus is available to control the Xhorse key cutting machines(CONDOR, DOLPHIN, and PANDA), to perfectly work as an operation screen.
By using KEY TOOL PLUS, completely free your mobile phones.


KEYTOOL PLUS PAREMETERS:

Serve Your Work the Best
CPU: 8-core 2GHz (4xCortex-A53 up to 2.3Ghz,4xCortex-A53 up to 1.8Ghz)
RAM+ROM: 4G+128G
Operation System: Android 9.0
Screen Size: 10.1" HD Anti-glare; Anti-fingerprint,Resolution up to FHD+ (2,400*1,080)
Rear HD Camera: 13.0MP
Battery Capacity: 10000mAh
Charging: 30W Super Fast Charge
Bluetooth: 5.0 Bluetooth
WIFI: 2.4G/5G


Support
√ CAN and K protocol switch pin
√ Chip pin detection
√ Toyota smart key programming without simulator
√ Long distance IMMO collection

Built-in
√ OBD matrix switch
√ Radiofrequency simulator
√ Smart key simulator
√ Integrated key identification coil
√ BENZ infrared reading head




Xhorse Key Tool Plus Overview:



Light sensor: detect the brightness in the surrounding environment

Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency)

• Support reading, writing, and cloning common immo transponders
•  Support reading common ID transponders
•  Support reading common IC transponders
•  Support frequency detection of common vehicle remotes

Immo transponder placement hole for vehicle immo transponders

USB charging port:  support standard fast charge adapter and standard Type-C port DC-5V input.
PS2 port for remote programming
DB15 port: support standard & optional programming adapters with DB15 port
DB25 port for OBD matching
Benz Infrared (IR) port: support IR read Benz FBS3 & FBS4 smart key and support Benz IR reader

Package List:
1pc x Pad Main Unit
1pc x User Manual
1pc x Power Adapter
1pc x USB Cable 3.0 Type C
1pc x OBD DB25 Cable
1pc x OBD to Kia 10 Pin Connector
1pc x OBD to Honda 3 Pin Connector
1pc x Remote Programming Cable
1pc x Chip Storage Container
1pc x Prog DB15 Cable
1pc x Prog EEPROM Adapter
1pc x MB IR Adapter
1pc x MB NEC1 Adapter
1pc x MB NEC2 Adapter
1pc x MB NEC3 Adapter
1pc x MB Power Adapter
1pc x MC9S12 Reflash Cable
1pc x ECU Cable
